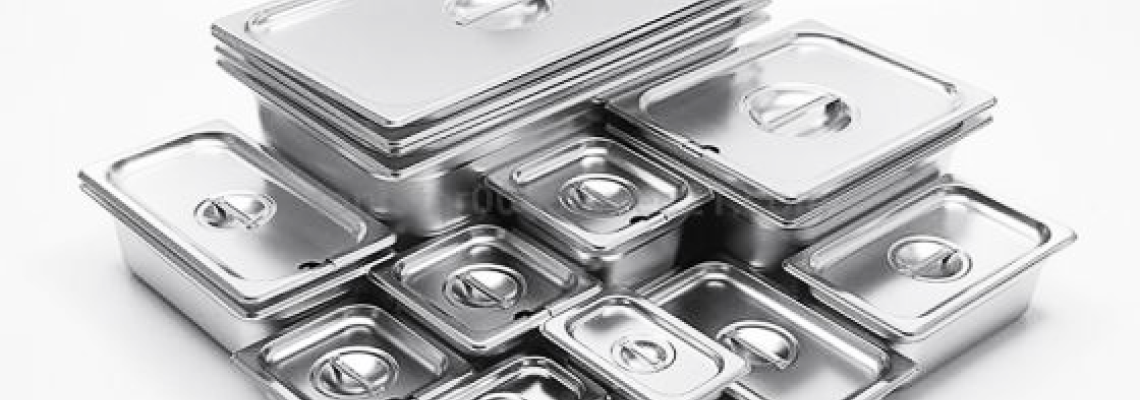

GN Gastro containers are an essential attribute of a professional kitchen. They are intended for food storage, transportation, display in the window of a store or cafe, sometimes they are used to prepare dishes such as sauces.

Standard GN-Gastronorm EN-631-1 - Common European standard for gastronomic containers.

Containers manufactured according to this standard are suitable for any technological or commercial installation.

The designation GN, which refers to container sizes and is indicated in the size table, means "Gastro-Norm size", the size of each individual container. The global designation of the main gastronorm container GN-1/1, which has standard dimensions: length - 530 mm, width - 325 mm. All other dimensions in this clasification are calculated based on this dimension.

Let's look at an example:

1. Container GN-1/1 (size 530x325 mm), based on all calculations, the first number indicates the length of the tray - 530mm, the second number indicates the width of the tray - 325mm.

2. The width of GN-1/2 remains unchanged, we divide the length in half, 530/2 = 265mm, as a result we easily get the size of the second container - 265x325mm.

In this classification, the third number can be specified (after the first two, the last), it indicates the depth, for example, GN 1/2-150, length - 325mm, width - 265mm, depth - 150mm.

This size chart clearly shows the size and relationship between the lengths of the different sides of the container.

Table of dimensions of standard GN containers

Modelis

Dziļums, mm

Iekšējie izmēri, mm

Ārējie izmēri, mm

Tilpums, L

GN 2/1

20

625x505

650x530

paplāte

40

11.0

65

18.4

100

28.9

GN 1/1

20

505x300

530x325

paplāte

40

5.1

65

8.5

100

13.3

150

20.0

200

26.5

GN 1/2

20

300x240

325x265

paplāte

40

2.3

65

3.8

100

6.0

150

8.9

200

11.7

GN 1/3

20

300x151

325x176

paplāte

40

1.4

65

2.4

100

3.8

150

5.5

200

7.5

GN 2/3

20

329x300

354x325

paplāte

40

3.3

65

5.4

100

8.5

150

12.7

GN 1/6

65

151x137

176x162

1.0

100

1.6

150

2.2

GN 1/9

65

151x83

176x108

0.6

100

0.9
